BuzzsawX 30 and 50 Size Motors- INSANE SPEED AND POWER Scx24 Ax24
BUZZSAW X motors for the axial scx24, ax24 and others from Mofo Rc. You must select the motor size and the gear you need installed from the options.
SCROLL TO THE BOTTOM FOR IMPORTANT GEAR SELECTION INFORMATION

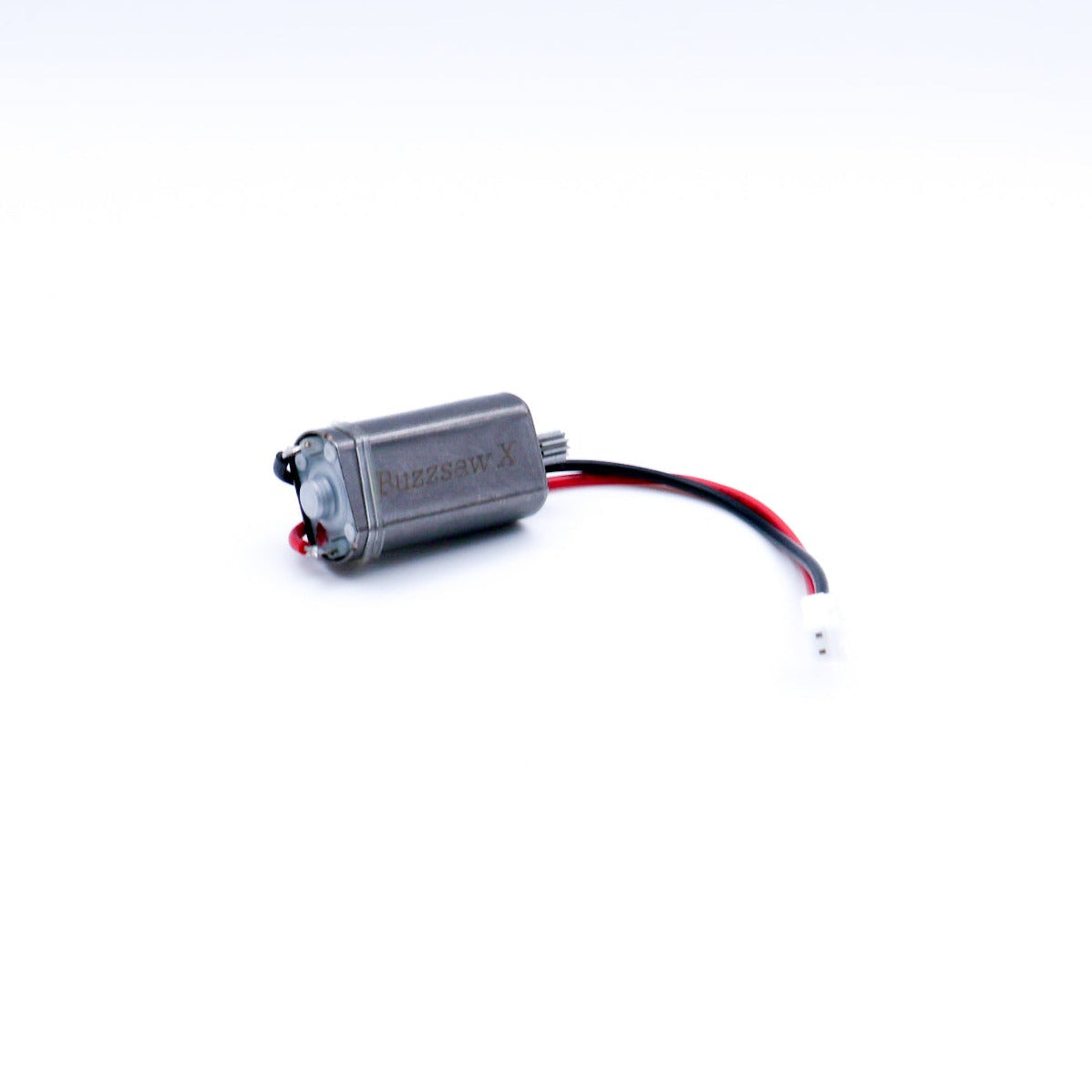

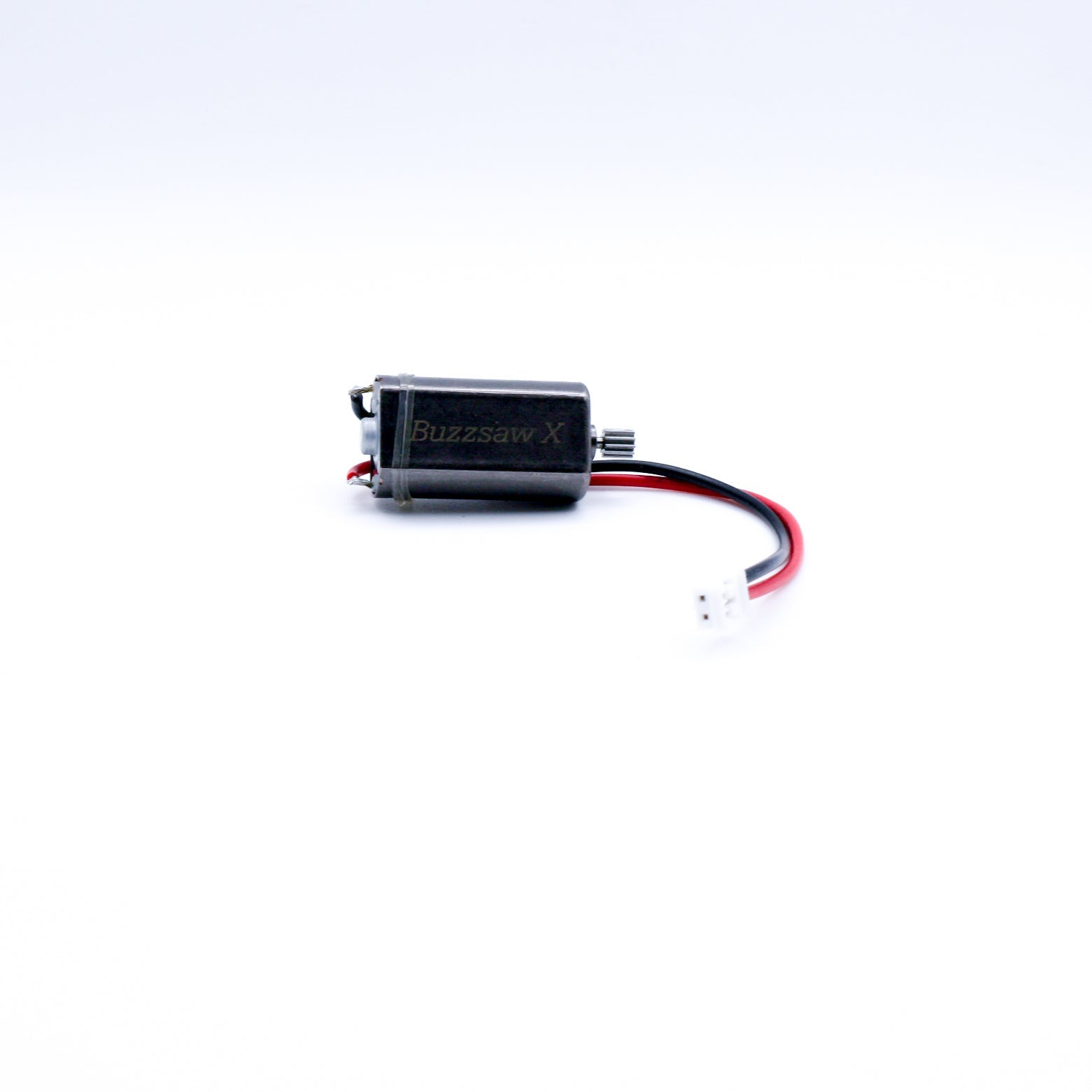

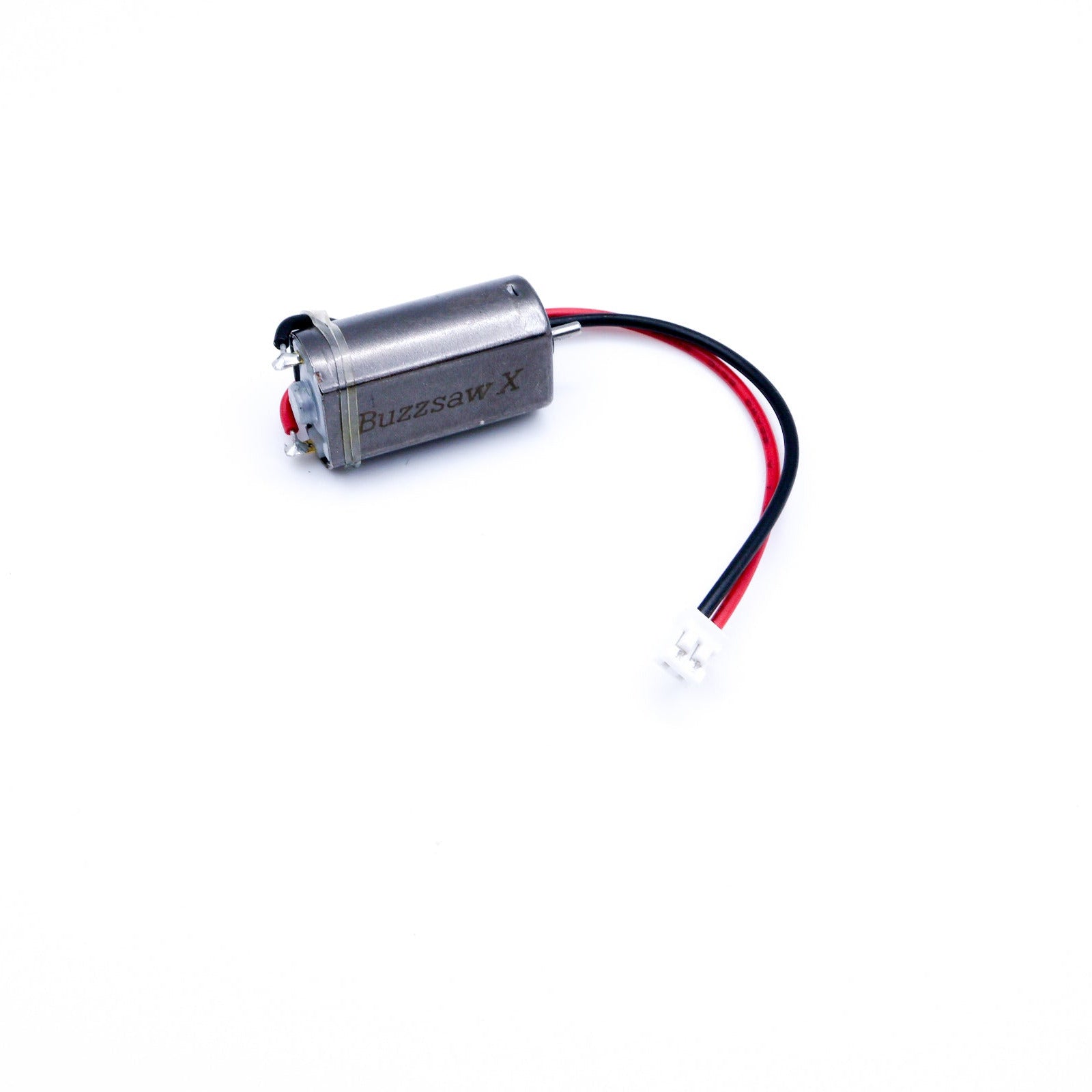

BUZZSAW, This is the version X motor, Upgraded RPM of 50,000 for better top speed, Ass Hauling and obstacle climbing that requires more wheel speed or bouncing over. Motors have mind boggling torque due to the massive Neodymium magnets. Due to the RPM of these motors they are not recomended for use with 3s

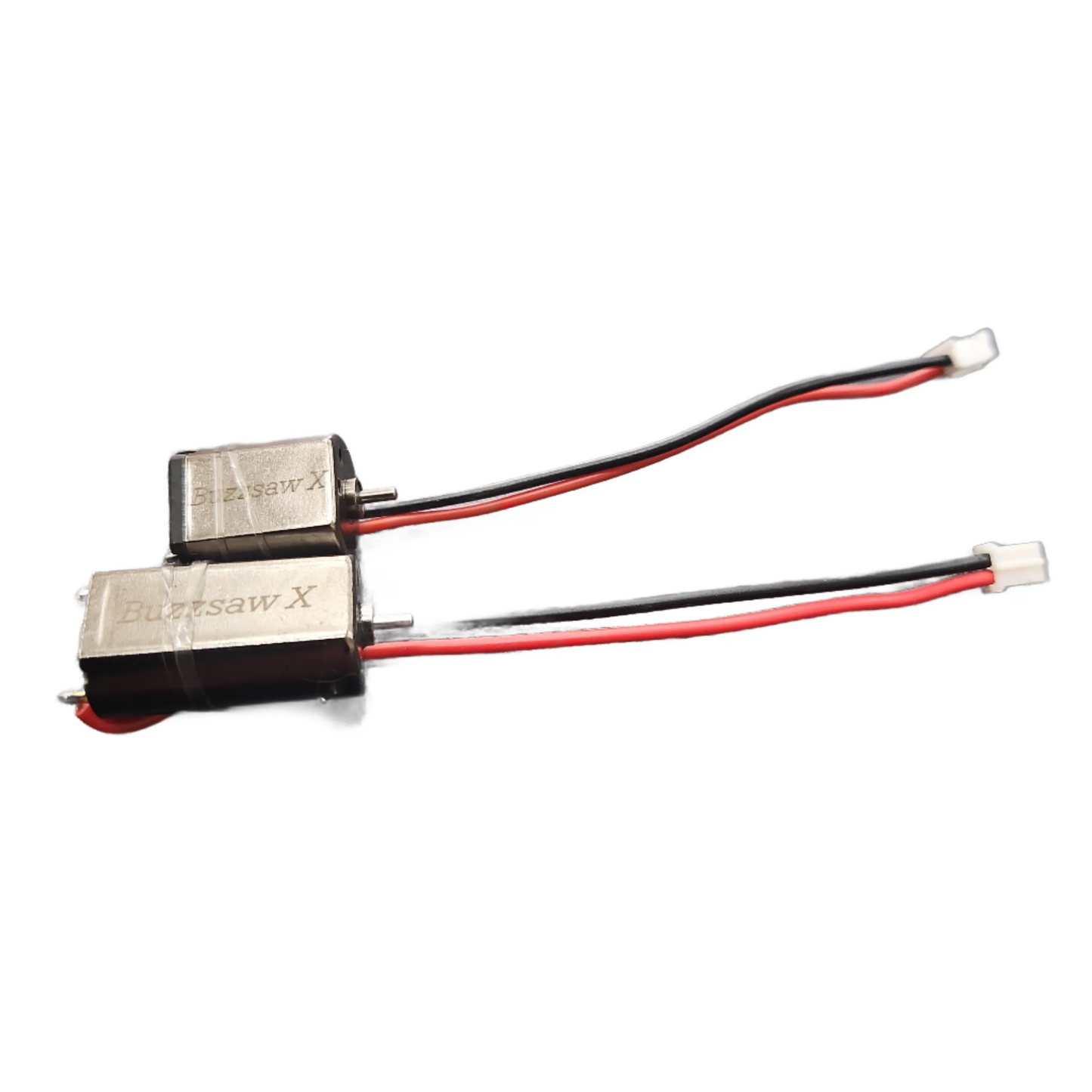

Motor Options: The Buzzsaw X 50 will be larger than the 30 size Buzzsaw X in length, The 30 will fit in tight spaces and still offer the 50,000 RPM speed that the buzzsaw X 50 has. But may run hotter on heavier or larger tire rigs. To get the most out of your Buzzsaw X id suggest an aftermarket ESC. See Below for more info.
BUZZSAW is one of very very few motors that can claim Direct bolt in for the Scx24 and Ax24. This motor DOES NOT require a different motor mount and instead has the same mounting bolt pattern as the stock 030 motor. PH2.0 motor connector for plug and play, Simply remove old motor and install new motor. Plug it in and go! Some models may require you cut off the passenger front battery tray leg for fit due to length of the 50 size motor
* BUZZSAW is a speed demon and powerhouse, But It is also Beautiful! Gorgeous Black Chrome electroplated finish.
* Super powerful Neodymium Magnets for insane torque.
* PH 2.0 stock connector for axial scx24 and ax24.
* Ridiculous Top end speed, And massive torque throughout the RPM range.
* Long Life Carbon / Copper Hybrid Brushes for less heat, Lower draw, And longer life.
* Wires are Soldered on at 90 degrees and banded to the motor to prevent hangups and improve clearance and solder joint life.
AXIAL - The stock axial scx24 / ax24 uses the mod.3 gear pitch, The Stock motor pinion gear size is mod.3 and has 11 gear teeth. If you have not changed the spur gear or transmission on your scx24/ax24 then the gear selection you want is the mod.3 11t, Currently the only other gear pitch for the scx and ax24 is Mod.5, Mod.5 has larger gear teeth and less teeth count on the gear. If you have changed your transmission and are not sure what gear pitch you have count the teeth on the gears when you remove your spur gear cover. The stock spur gear will have more than 50 Teeth on it and will be mod.3 If you have 50+ teeth on your spur gear you have mod.3, If you only count 30-35 teeth on the spur gear you have mod.5 and will need the mod.5 option. The motor pinion gear for mod.5 will have 7 or 8 teeth on it.
CRAWLING? - There are better motors we offer for crawling, The Buzzsaw X is a speed monster. IF you are looking for a crawler motor or mainly crawling id suggest the TorqueBeast 50. HOWEVER that being said the Buzzsaw X will crawl very decent when used with an aftermarket ESC such as the Mofo RockWolf Esc, Dinky Rc esc or the Furitek esc.
Other Models? - The BUZZSAW X Motor will fit many other models but you must do your research before purchasing for other models as gear pitch and teeth count and pinion depth may be different.
