NanoBAM Brushless Motor and Motor Mounting combos
Pictures show both Forward facing, and Standard Mounting position Study Closely
Were Extremely Excited about this new NanoBAM motor, Currently this will be replacing the NanoBeast motor, It has been hopped up for even better low speed operation and even better top speed and MORE POWER as well!! This DOES require a brushless esc to operate. If you want to purchase the furitek lizard pro esc at the same time and we have it in stock you can select the option with furitek. Will also work with other brushless ESC options but works best with FOC or 32 BIT esc Brushless Technology.
Motor shaft diameter is 1.5mm for the press on pinion gears. Has a Ph3.0 connector on motor wires for use with micro escs. This is a 9 Slot, 12 Pole motor with 3200KV Speed. It is Extremely precise and smooth at low speed all the way through the Rpm range. Has TONS of power for weighted rigs and runs relatively cool compared to other motors of this size due to larger slots in the stator and a larger motor can for heat dissipation.
Select NanoBAM Brushless motor alone or with an 11T steel pinion gear installed or with the mounting options of your choice for the axial scx24 or ax24 and maybe others soon to come. In the AX24 With the stock chassis you will likely need to Dremmel/File down the rearward part of the passenger side Frame rail so the motor does not interfere

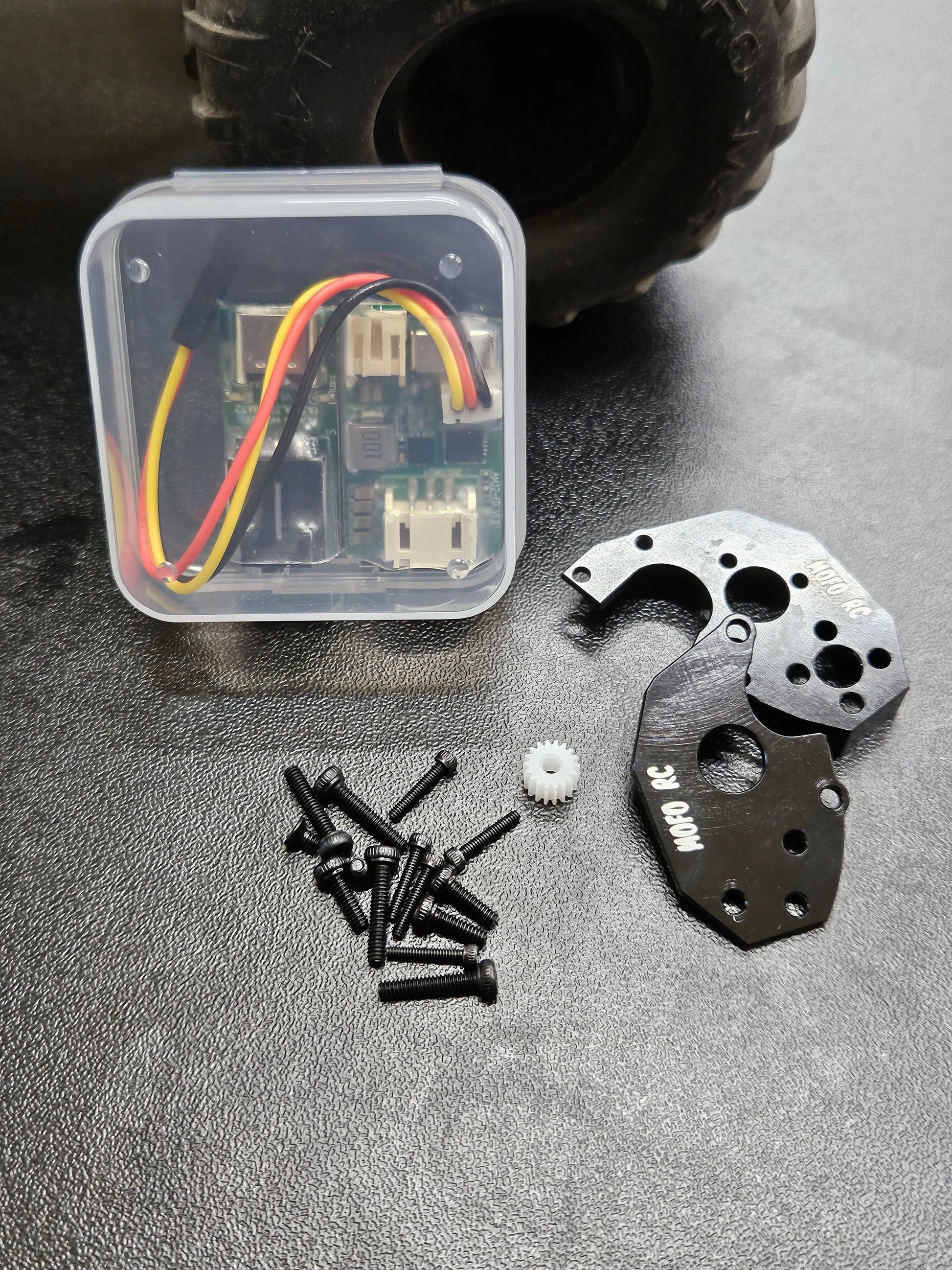

The Standard location Nano mount comes with the mount, screws and white nylon transfer gear to install the motor low down in the stock motor location and requires no frame or plastics modifications in most scx24s, If using a custom chassis or my UGLY chassis the mount may interfere with the chassis rails see last picture for modification to the ugly, Ensure the rotating motor housing doesnt contact your rear upper links or anything else so it can freely rotate. See install video by clicking here

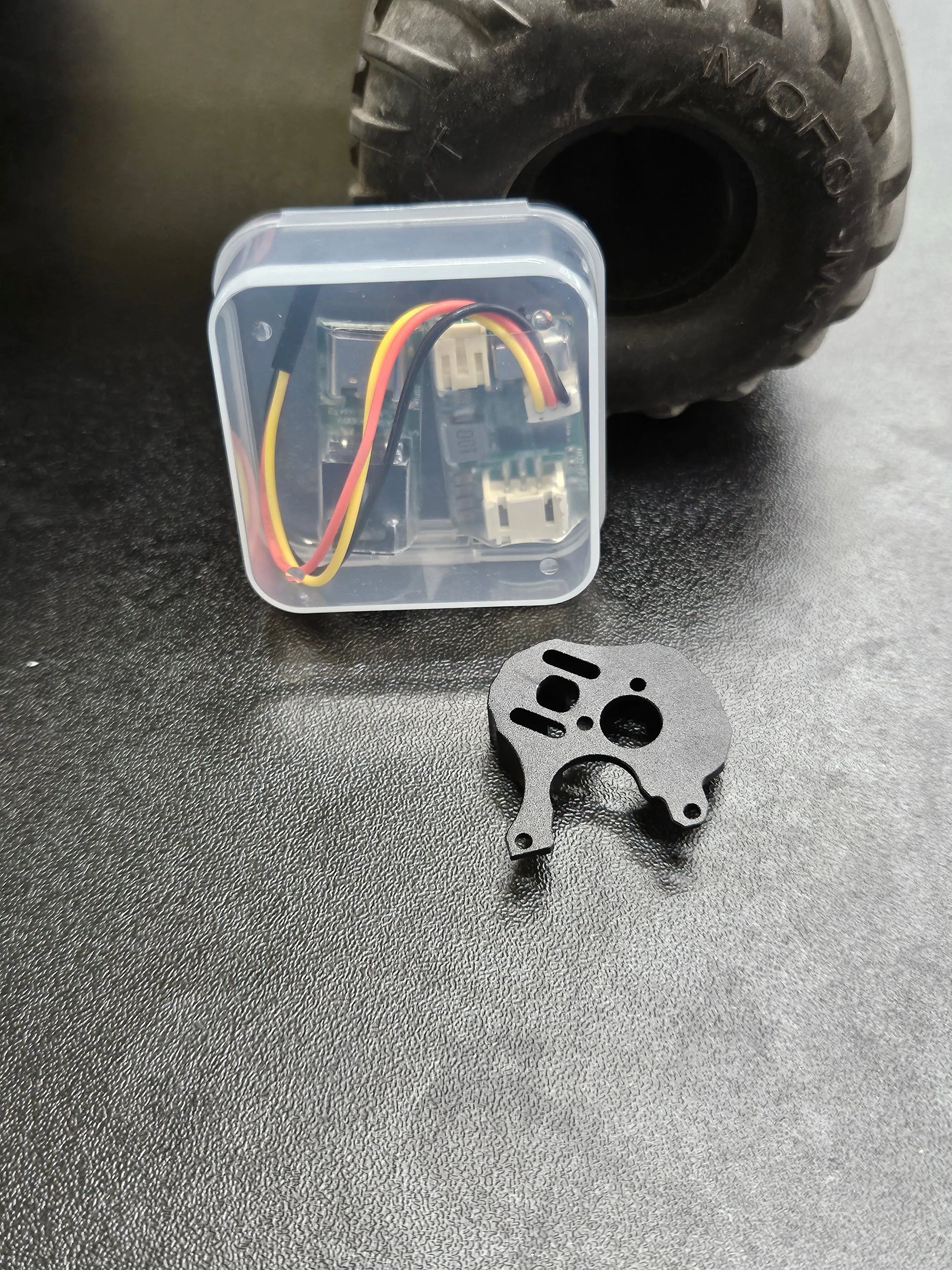

The Forward facing Nano Mount comes with the mount and screws and will mount the motor forward of the skid plate where your stock esc tray is.
There are numerous settings on the furitek esc and you may need to "play" with the settings and firmware versions to find what works best for you. Furitek Changes the versions quite often. And I cannot recommend which settings or firmware version will work best in your situation.
30 day warranty on brushless motors against manufacture defects.
