Revenge Of Pancake, "ROP" Brushless Purple Pancake Motor / Mount
Ultra smooth low end. Super High Power Kick in the pants top end. You love the "SMP" slow motion pancake. But want more More speed and More power? The "ROP" Revenge Motor is for you. 3400Kv Double the RPM of the SMP motor. Has an amazingly smooth low speed. The mid range jump out of FOC may be more noticeable due to the higher kv. And the top end will be twice that of the SMP 1700kv motor.
The options will be as follows

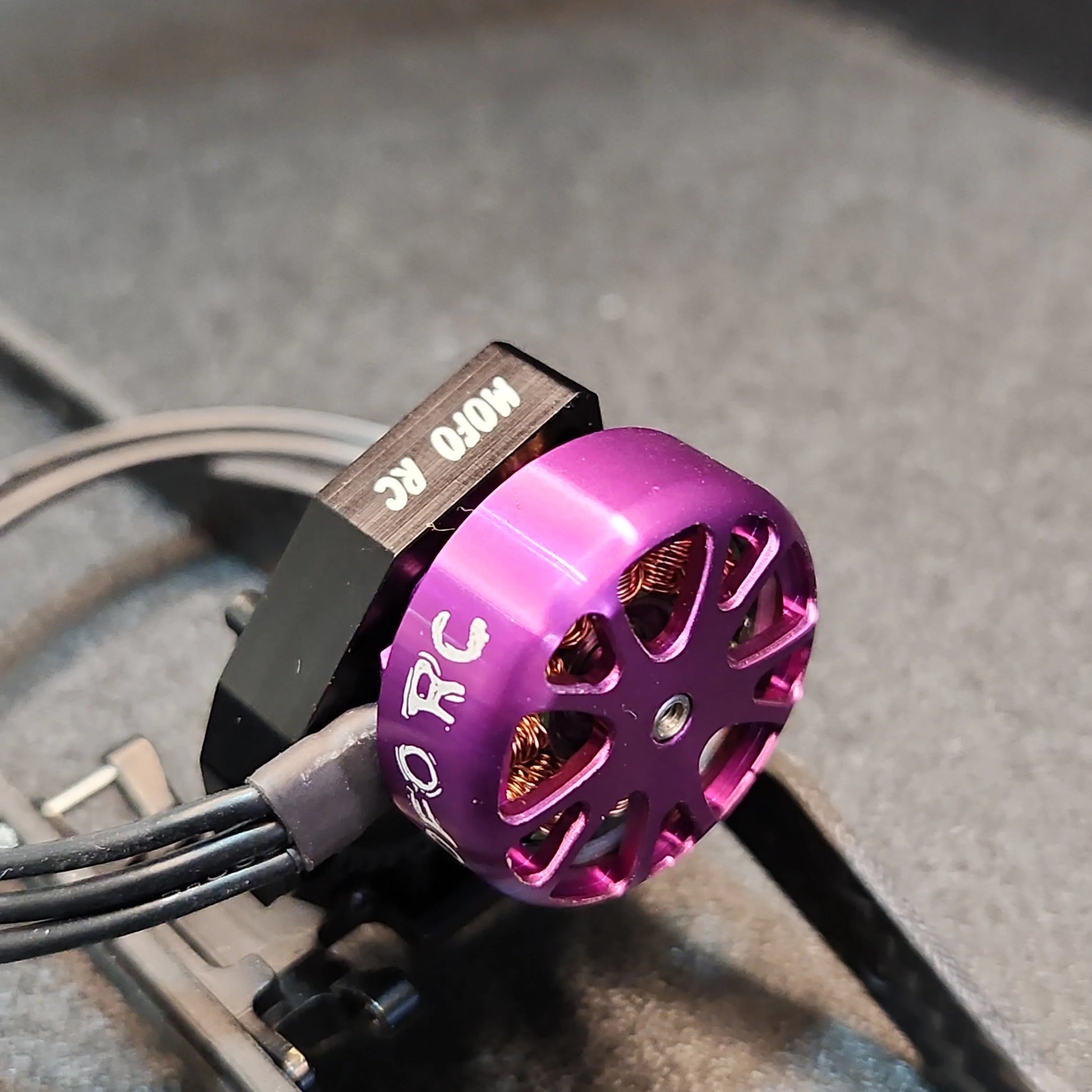

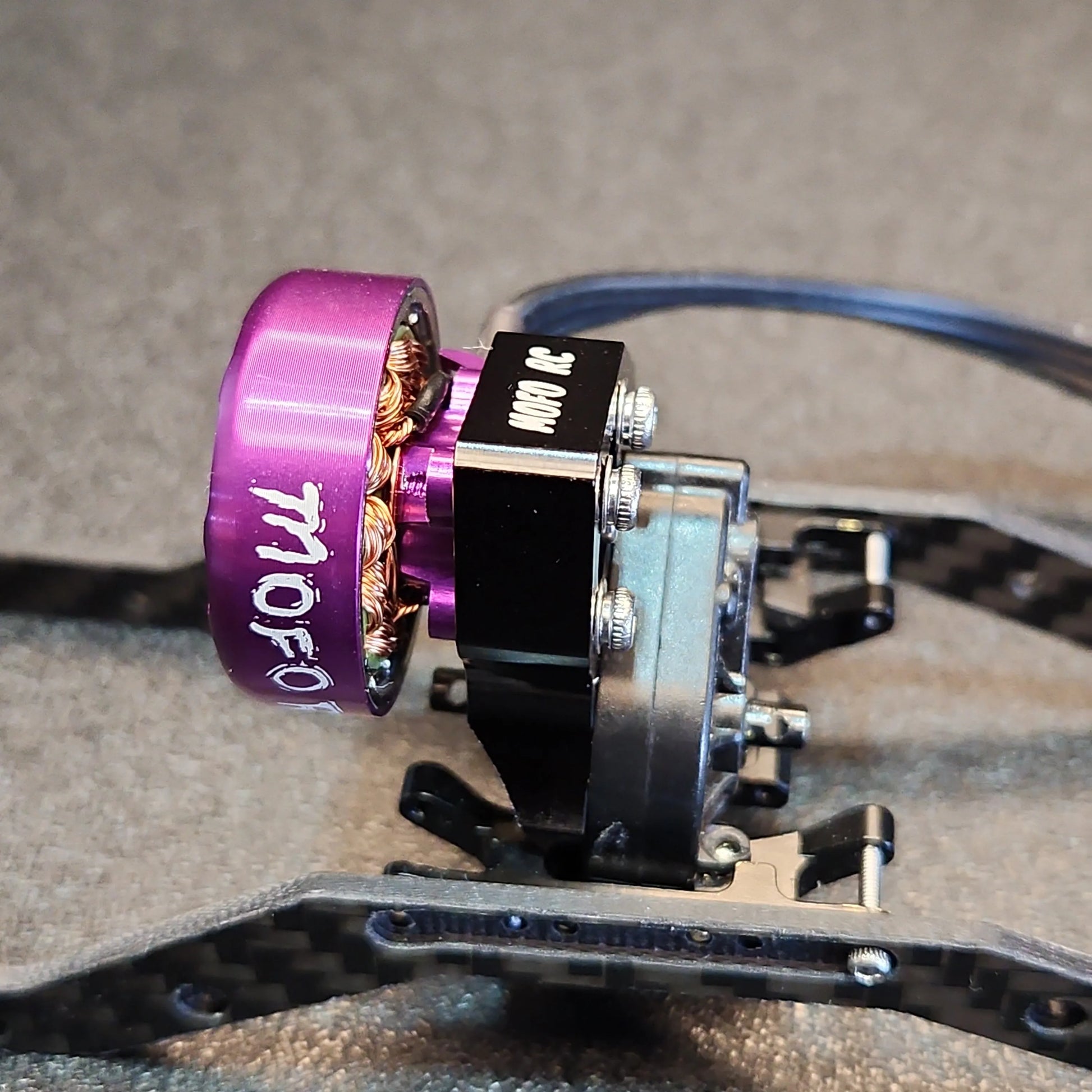

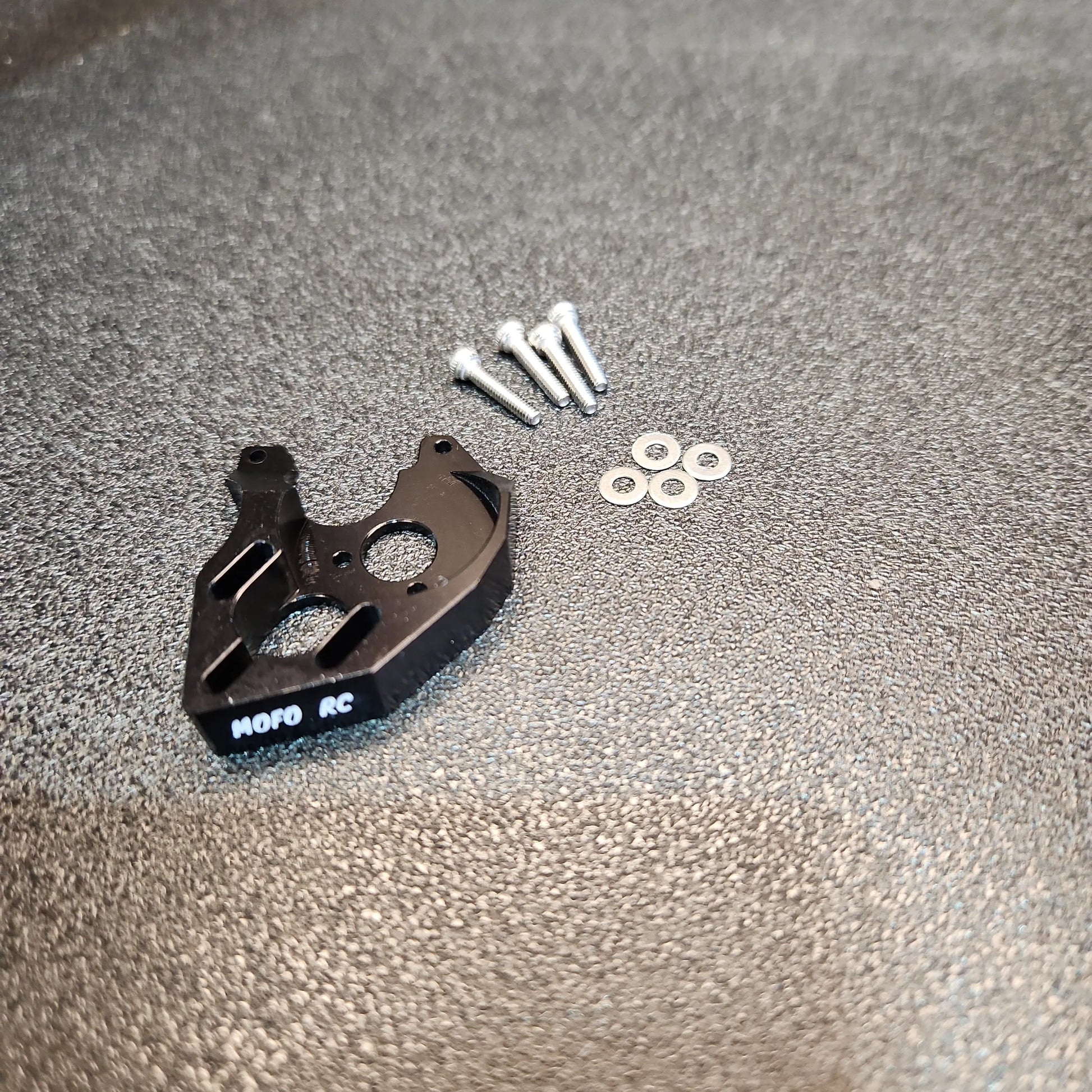

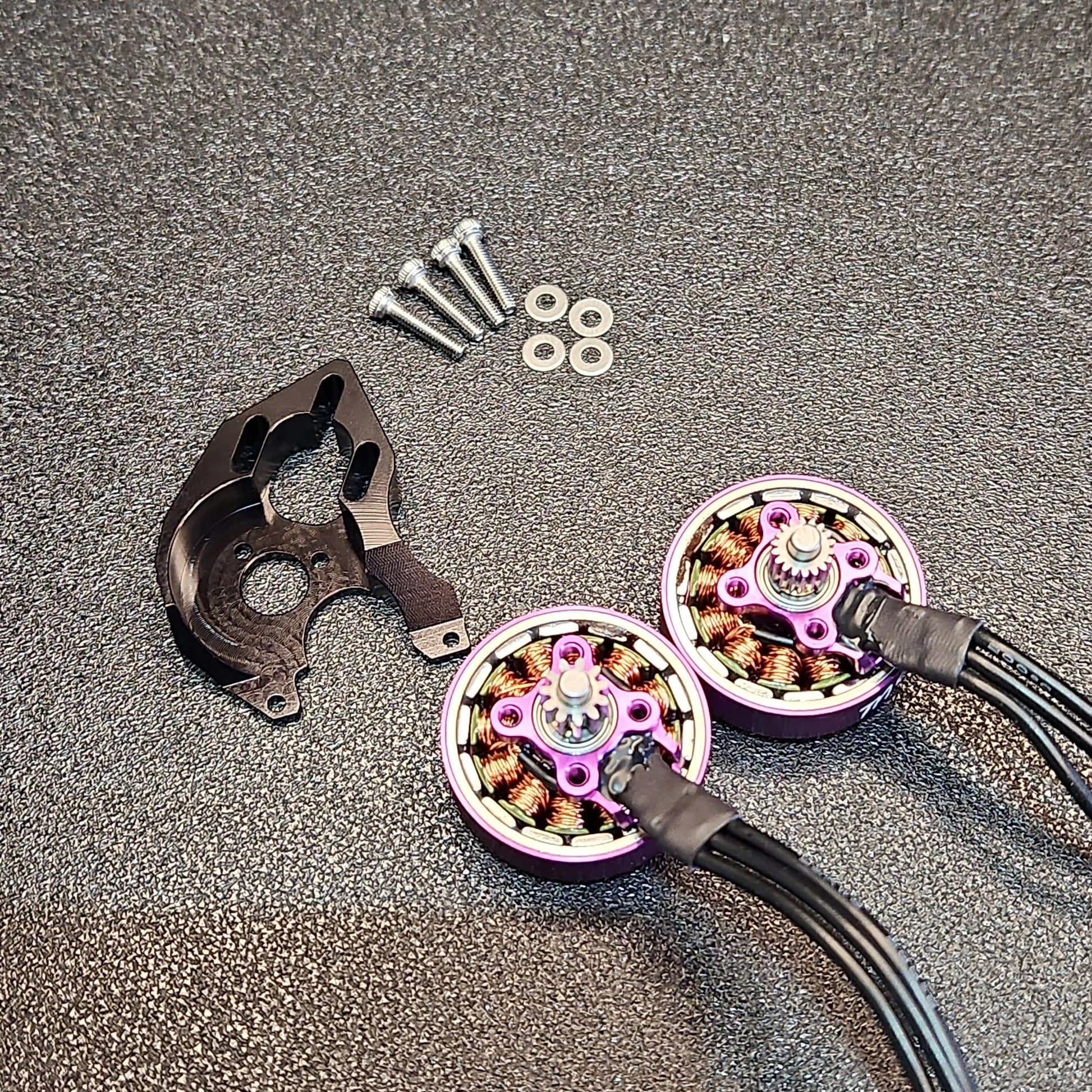

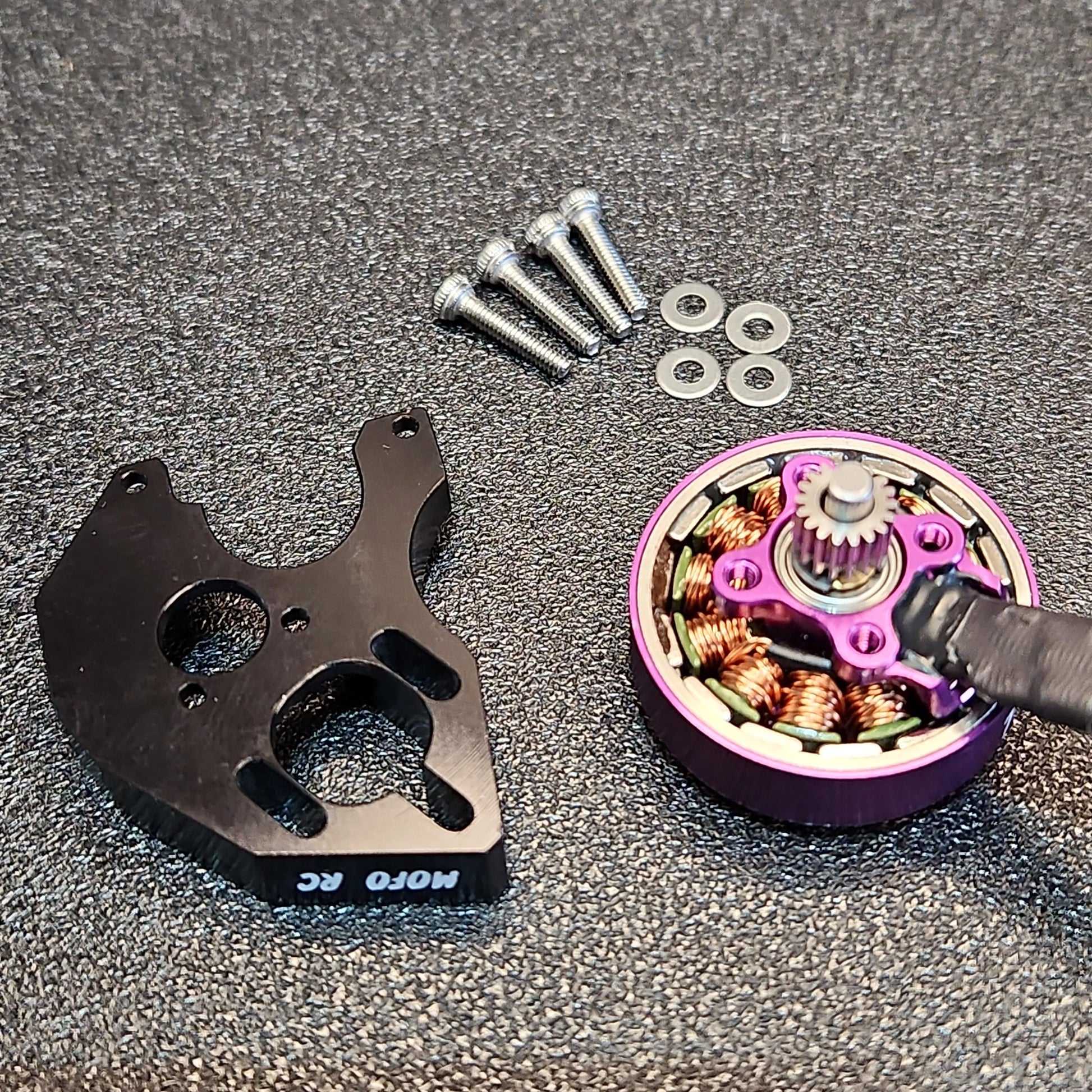

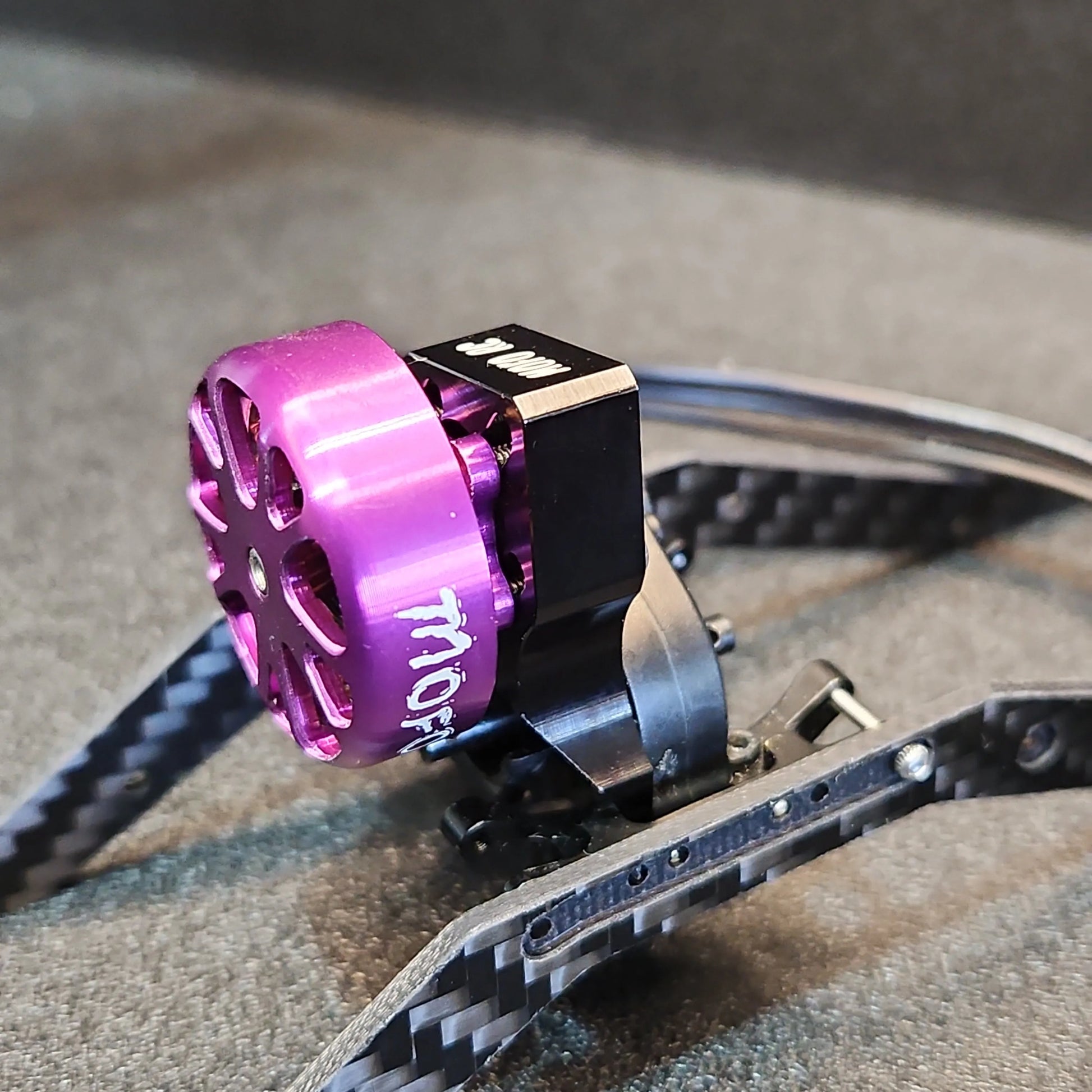

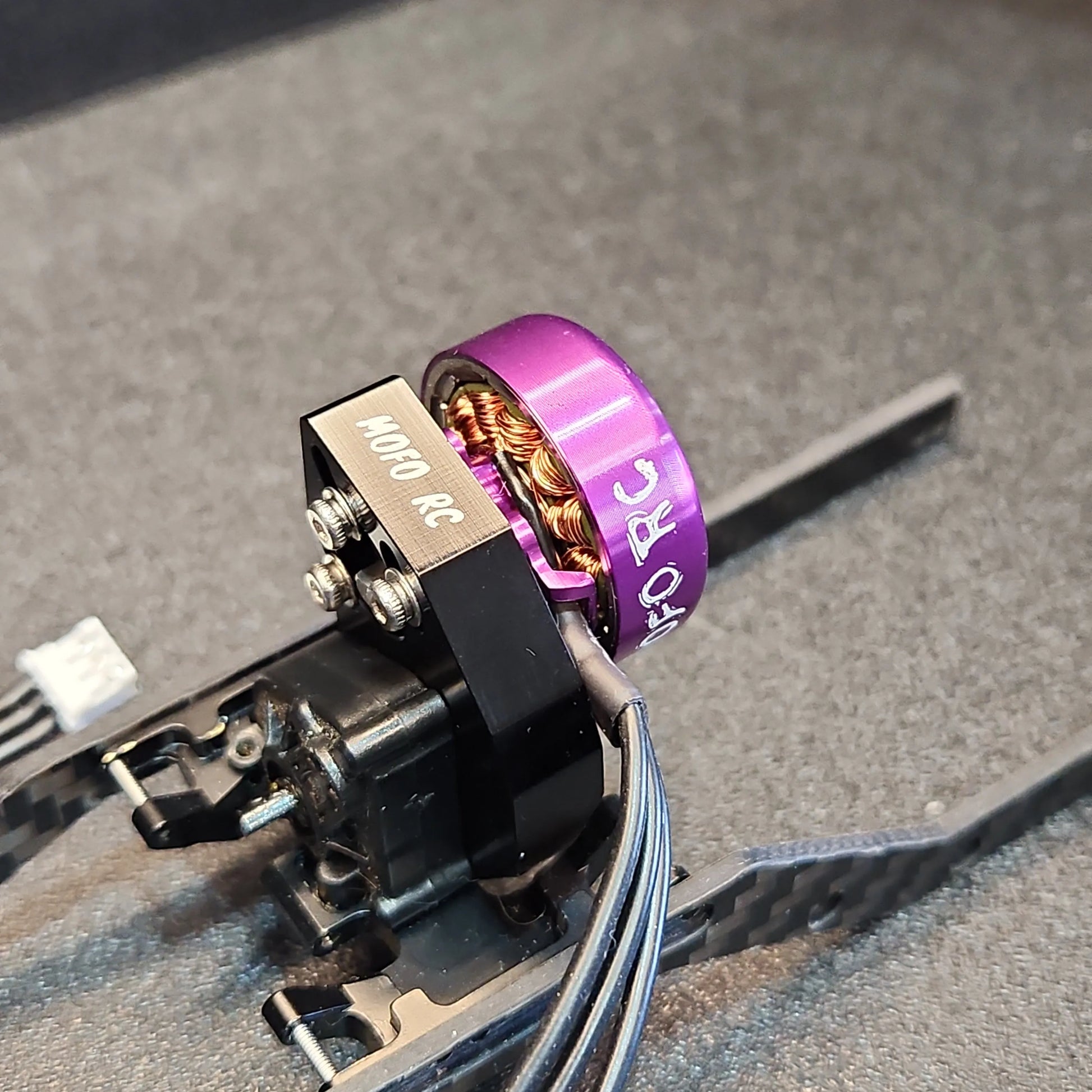

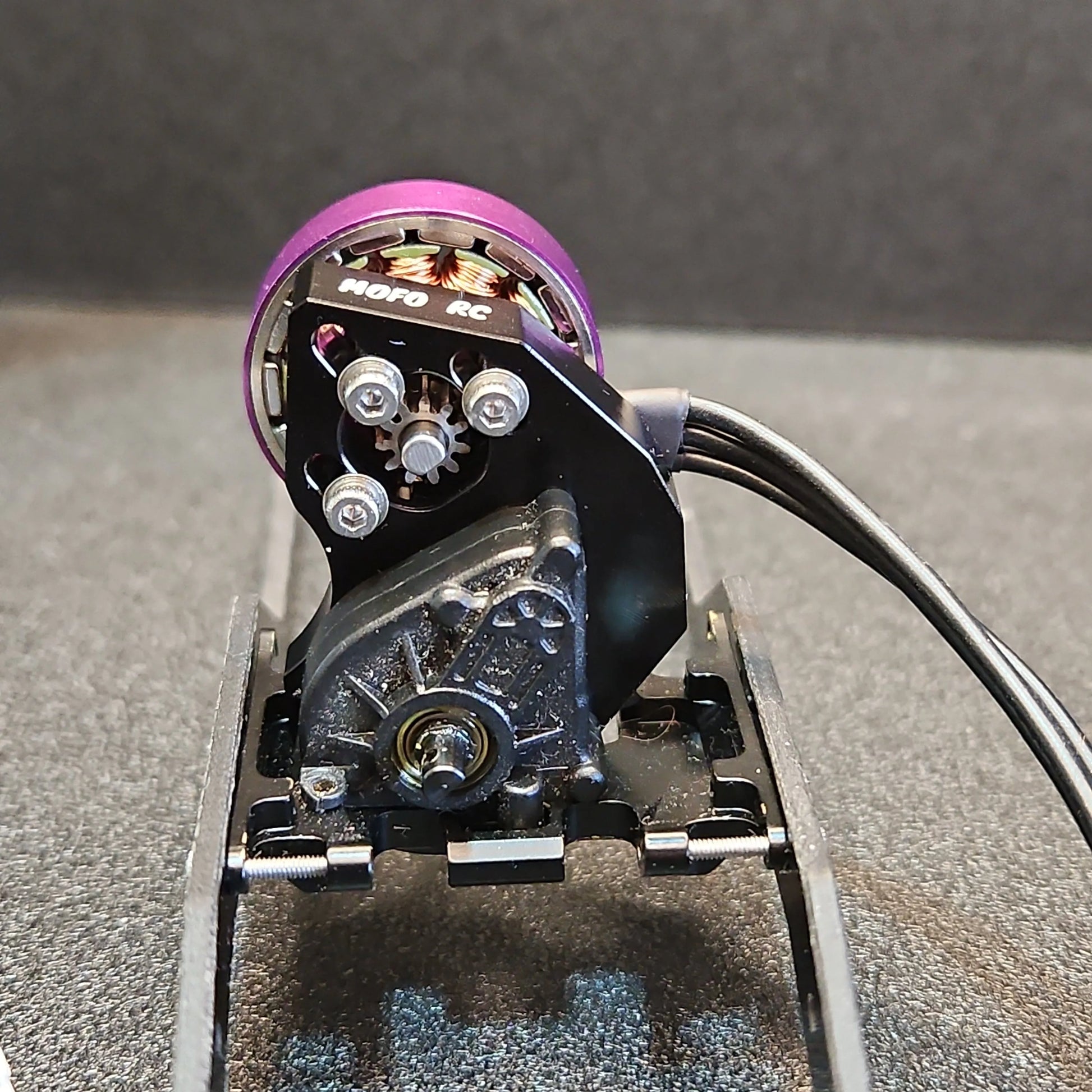

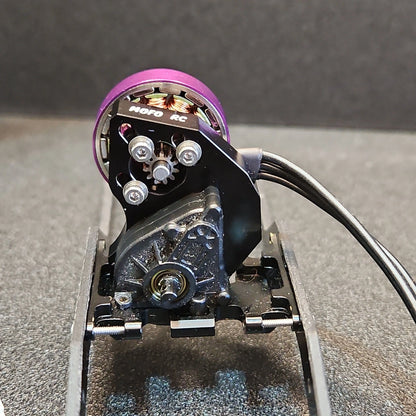

Mod.3 with mount will come with a 20T mod.3 Steel pinion gear pre-installed and pressed on, And a forward facing aluminum Mount as shown, This would be the option if you are using the stock scx24 spur gear or an aftermarket spur gear that is mod.3 pitch.

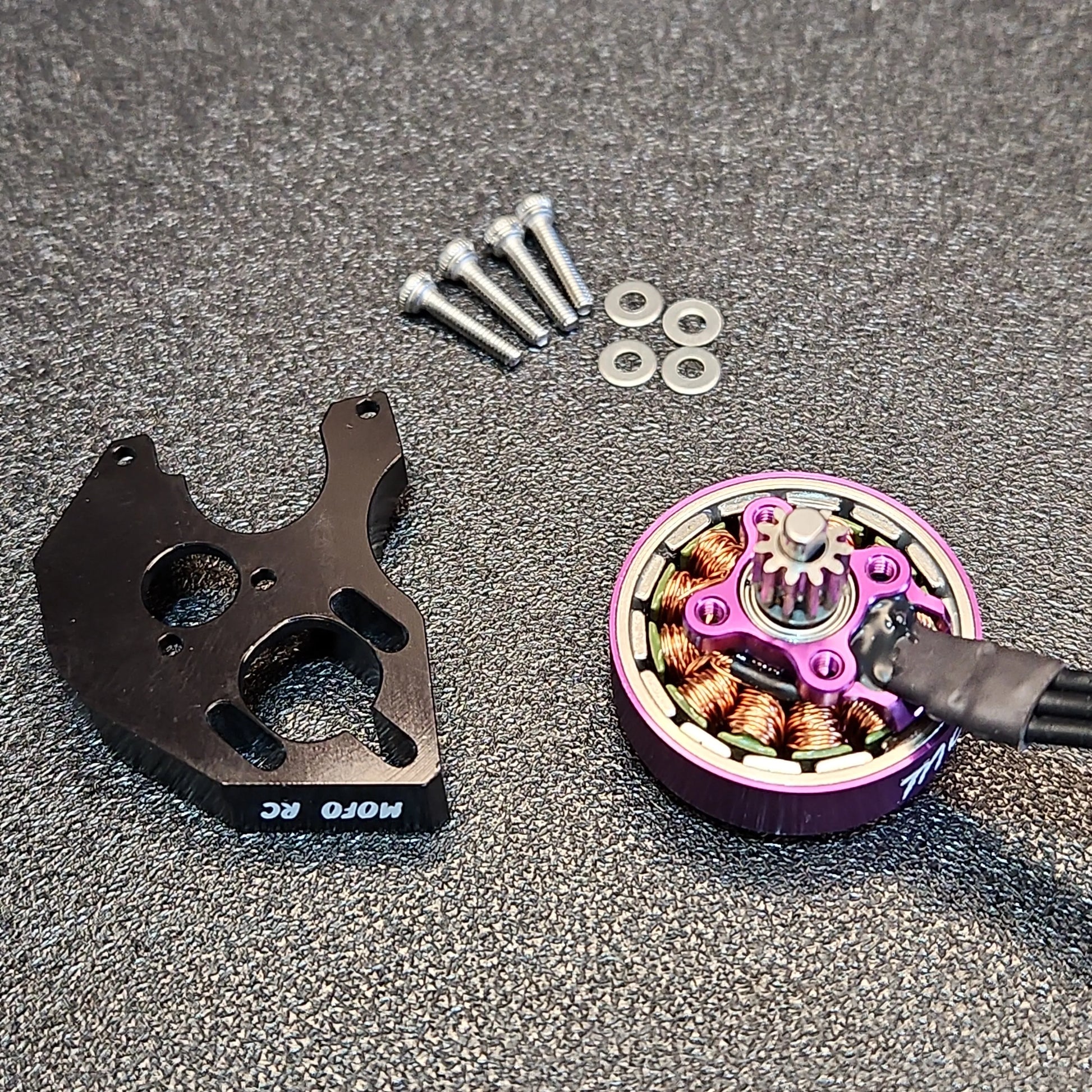

Mod.5 with mount will come with a 11T mod.5 Steel pinion gear pre-installed and pressed on, And a forward facing aluminum Mount as shown, This would be the option if you are using an aftermarket spur gear that is mod.5 pitch, Not the stock scx24 spur gear.

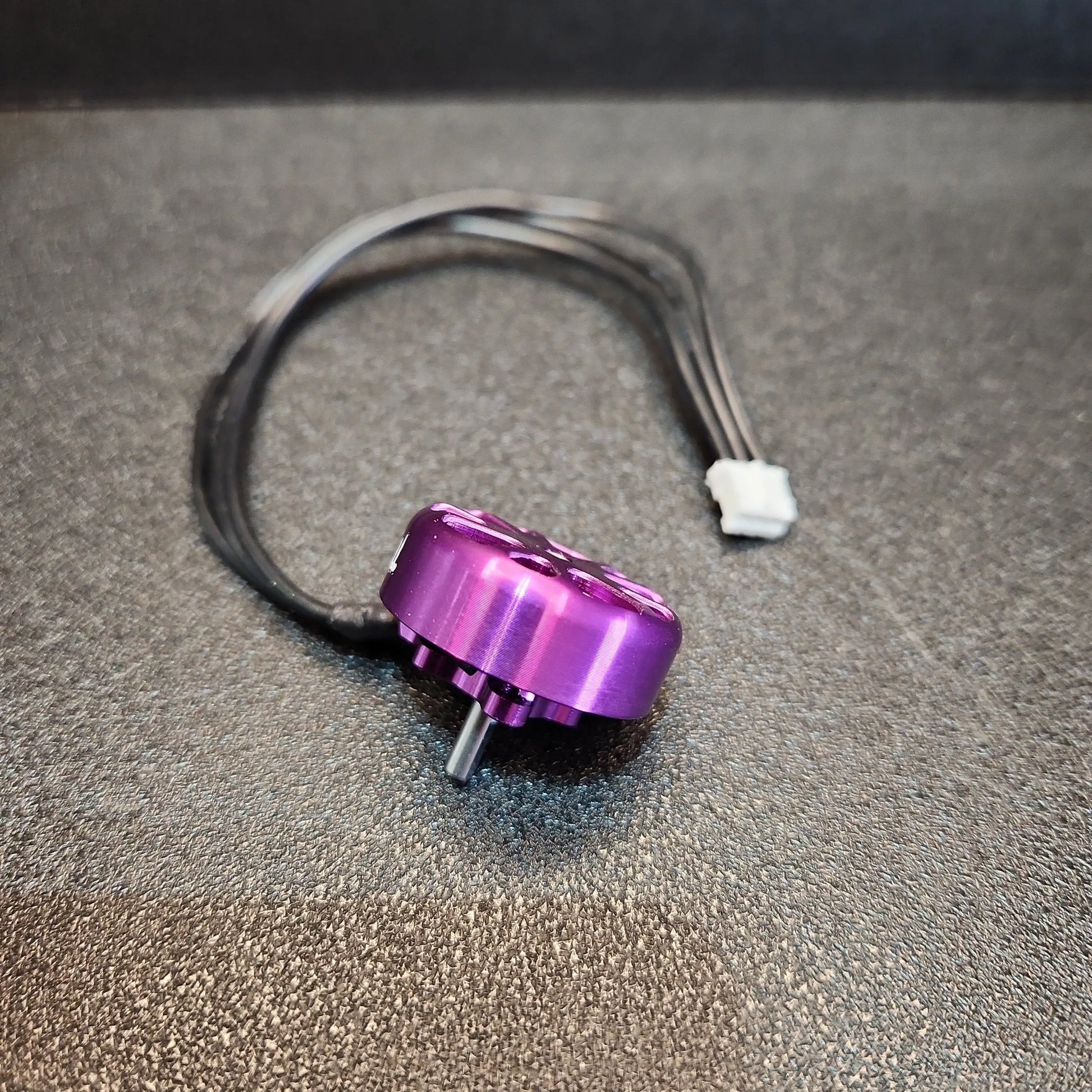

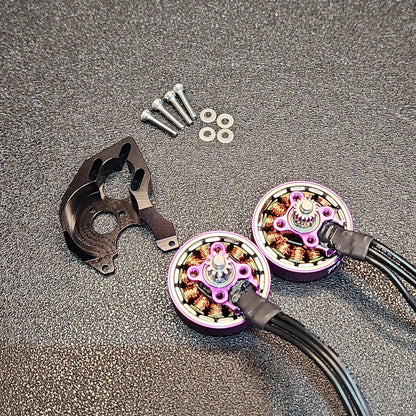

Motor Only no gear or mount, This will be the motor only, It will come with the wires and connector installed but no motor mount and no pinion gear installed. You will need a mount and you will have to use a pinion gear that is designed for a 3mm shaft, This DOES have the cutout for use with a pinion gear that uses a set screw or you can use the press on 3mm gears at moforc.com
The motor has a large size 3mm shaft with the cutout for use with either press on 3mm gears that are sold on this site or can also be used with set screw style 3mm pinion gears. The motor mount bolt spacing is 12mm center to center, The motor outside diameter is appx 26mm wide. The depth of the motor is just 13mm, The KV is 3400, The motor has 14 magnetic poles and 12 stationary slots. Motor weight is 18 grams.
